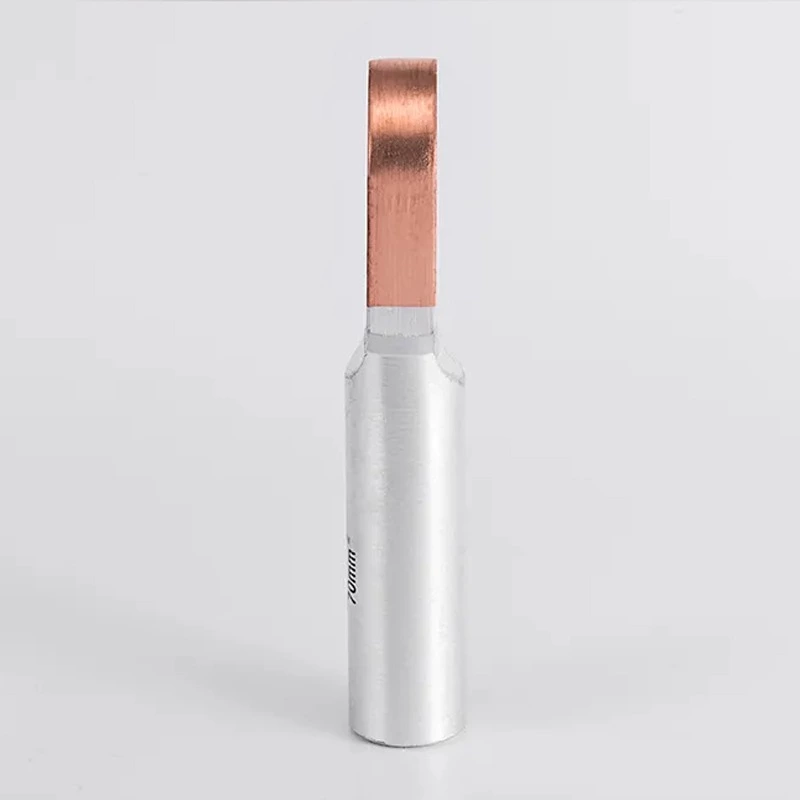

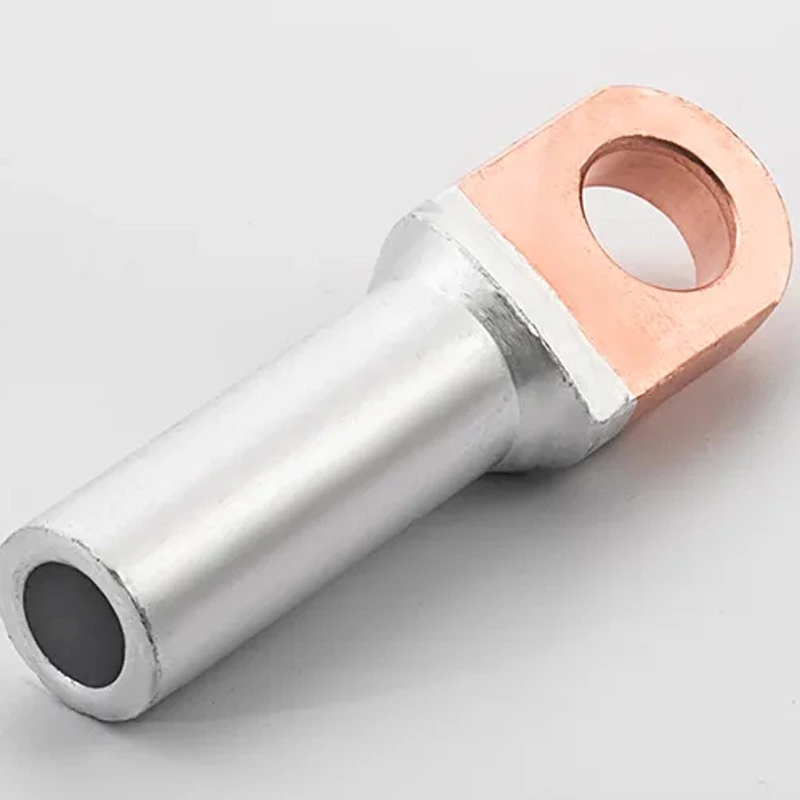

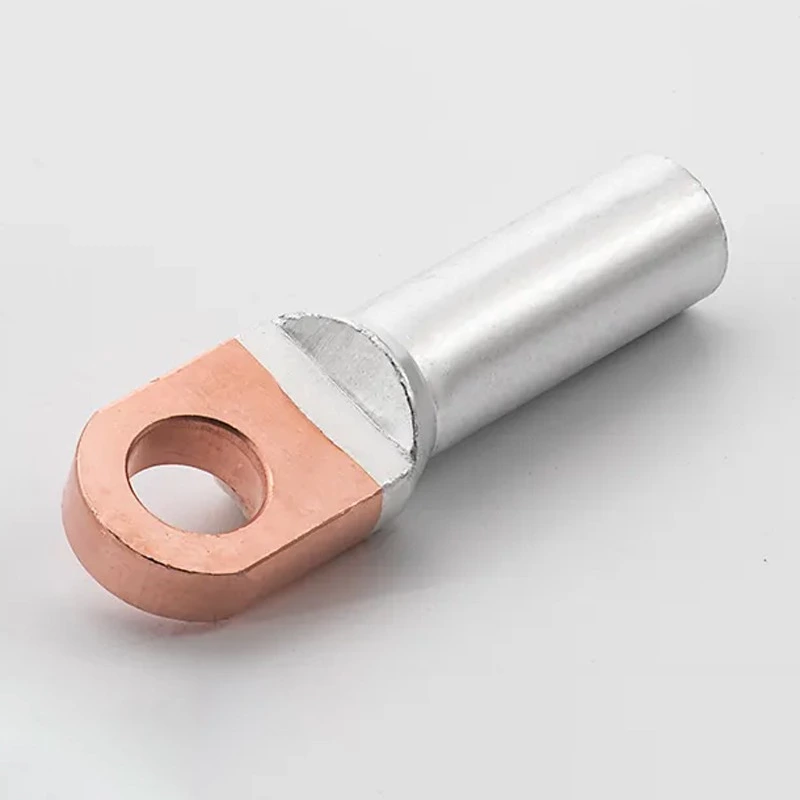

DTL-C Bimetal Cable Lug With Standard Size
DTL series of copper-aluminum wiring terminal are suitable for transition of the circular aluminum wires, hemicycle-sector aluminum wire, power supply cable in the distribution equipment and copper terminals of the electrical equipment.

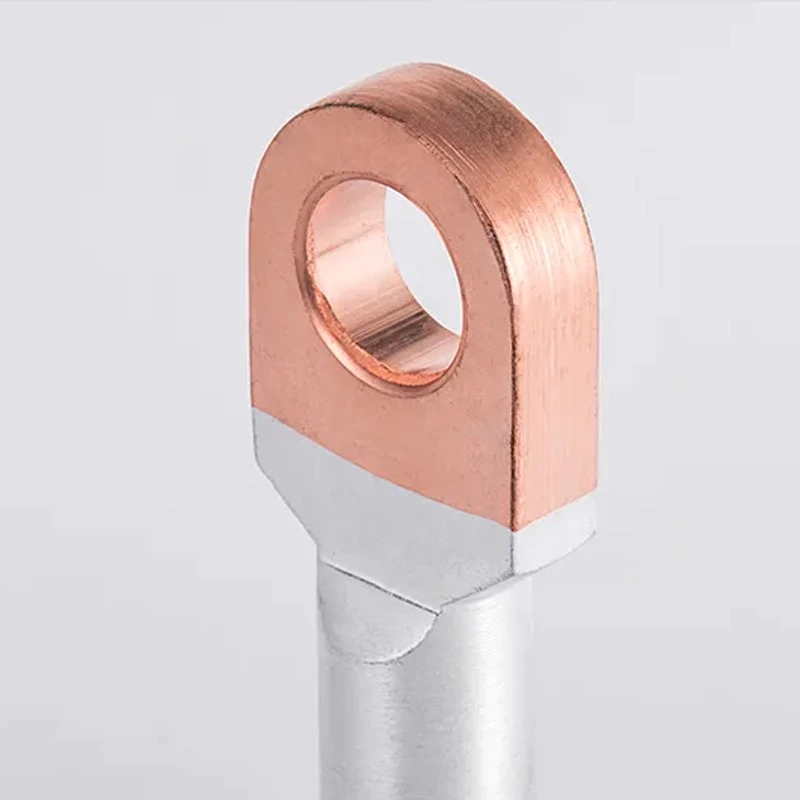

Material: L3 aluminum and T2 copper.

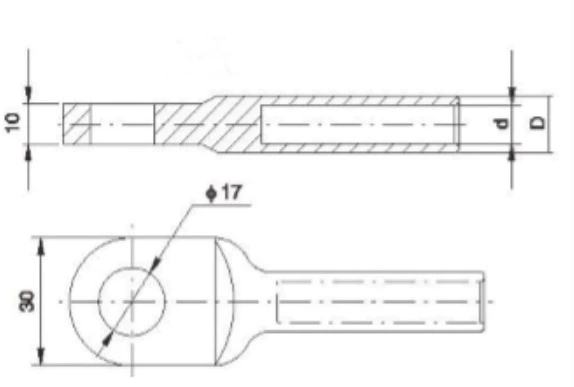

| ITEM NO. | DIMENSION(MM) | |
| D | d | |
| DTL-C-630-35 | 12 | 9 |
| DTL-C-630-50 | 14 | 10 |
| DTL-C-630-70 | 17 | 12 |
| DTL-C-630-95 | 18.5 | 13.5 |
| DTL-C-630-120 | 21 | 15 |
| DTL-C-630-150 | 26 | 16 |
| DTL-C-630-185 | 25 | 18 |
| DTL-C-630-240 | 28.5 | 20.5 |
| DTL-C-630-300 | 31.5 | 22.5 |
| DTL-C-630-400 | 35.5 | 25.5 |
| DTL-CL-630-35 | 14 | 8.2 |
| DTL-CL-630-50 | 16 | 9.5 |
| DTL-CL-630-70 | 18 | 11.5 |
| DTL-CL-630-95 | 21 | 12.5 |
| DTL-CL-630-120 | 23 | 14 |
| DTL-CL-630-150 | 25 | 15.5 |
| DTL-CL-630-185 | 28 | 17.5 |
| DTL-CL-630-240 | 31 | 19.5 |
| DTL-CL-630-300 | 35 | 22 |
| DTL-CL-630-400 | 39 | 25 |
Installation Precautions
1. The screw must be tightened.
2. The cable and copper lug must be inserted in place and pressed with crimping tools.
