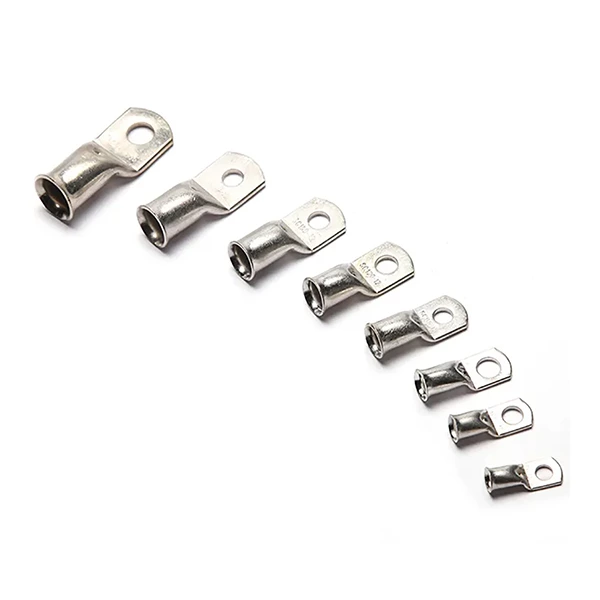

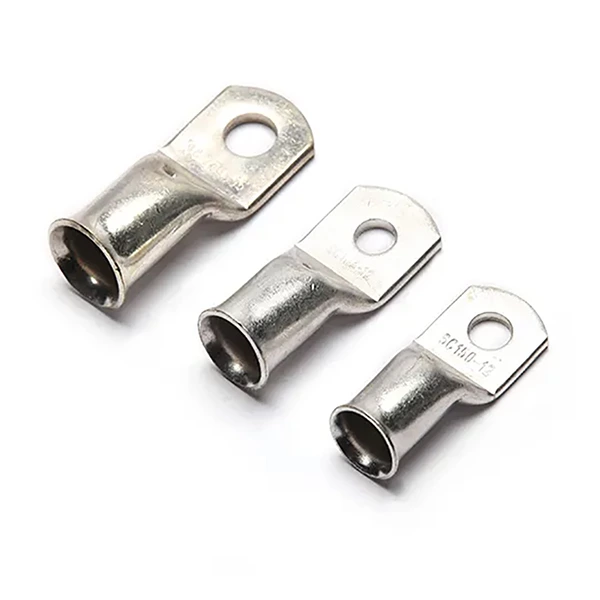

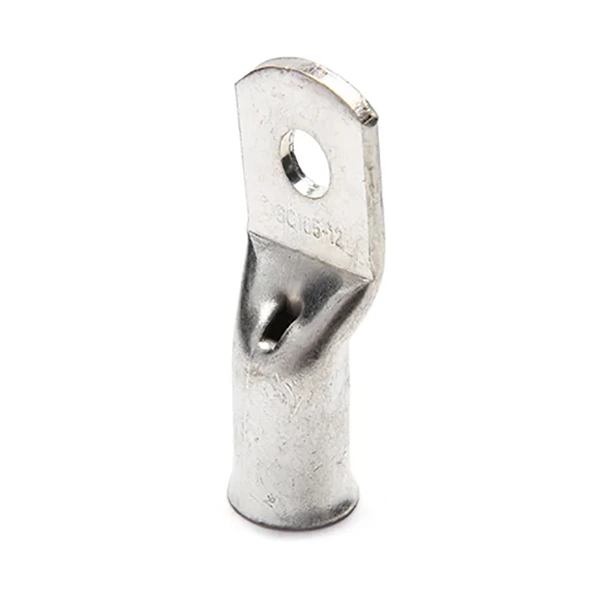

SC(JGB) Copper Lugs With Flared Barrel

LILIAN copper lugs made by T2 pure copper tube with good electrical performance, resistance to galvanic corrosion, and long service life, they are suitable for connection the copper cable to other electrical equipment, like distribution terminal block,fuse terminal block,solar panels,home applications,etc., .Terminal lugs can be crimped by hydraulic cable lugs crimper tool or hammer style crimper.Our terminal lugs with heavy duty construction improves high temperature durability and closed design seals out the moisture, ensure connection reliability.The ends with high standard flared opening for wire insert more easier.


Copper cable lugs are made of 99.9% pure copper tube with tinned coating for corrosion protection

Working temperature: -55°C ~ 150°C.

Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.

SC(JGB) Copper Lugs With Flared Barrel

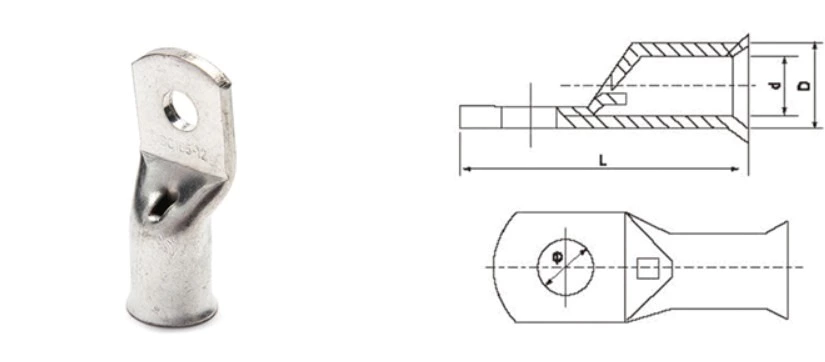

Item No Dimension(mm)
φ D d L
SC(JGB)-1.5 φ4.2,φ5.2 3.5 1.8 18
SC(JGB)-2.5 φ4.2,φ5.2,φ6.2 4 2.5 19
SC(JGB)-4 φ5.2,φ6.2 4.8 3.1 21
SC(JGB)-6 φ5.2,φ6.2,φ8.2 5.5 3.8 24
SC(JGB)-10 φ6.2,φ8.2 6.8 4.8 25.5
SC(JGB)-16 φ6.2,φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGB)-25 φ6.2,φ8.2,Φ10.5 9 7 34
SC(JGB)-35 φ6.2,φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGB)-50 φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGB)-70 φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGB)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGB)-120 φ12.5,φ16.5 19.5 15.5 63
SC(JGB)-150 φ12.5,φ16.5 21 16.5 71
SC(JGB)-185 φ16.5 23.5 18.8 78
SC(JGB)-240 φ16.5 26.5 21 92
SC(JGB)-300 φ16.5,φ20.5 30 24 102
SC(JGB)-400 φ16.5,φ20.5 34 26.5 113
SC(JGB)-500 φ16.5,φ20.5 38 30 123
SC(JGB)-630 φ20.5 45 35 135
SC(JGB)-800 φ22.5 50 39 170

Installation Precautions

1.The screw must be tightened.

2.The cable and copper lug must be inserted in place and pressed with crimping tools.
