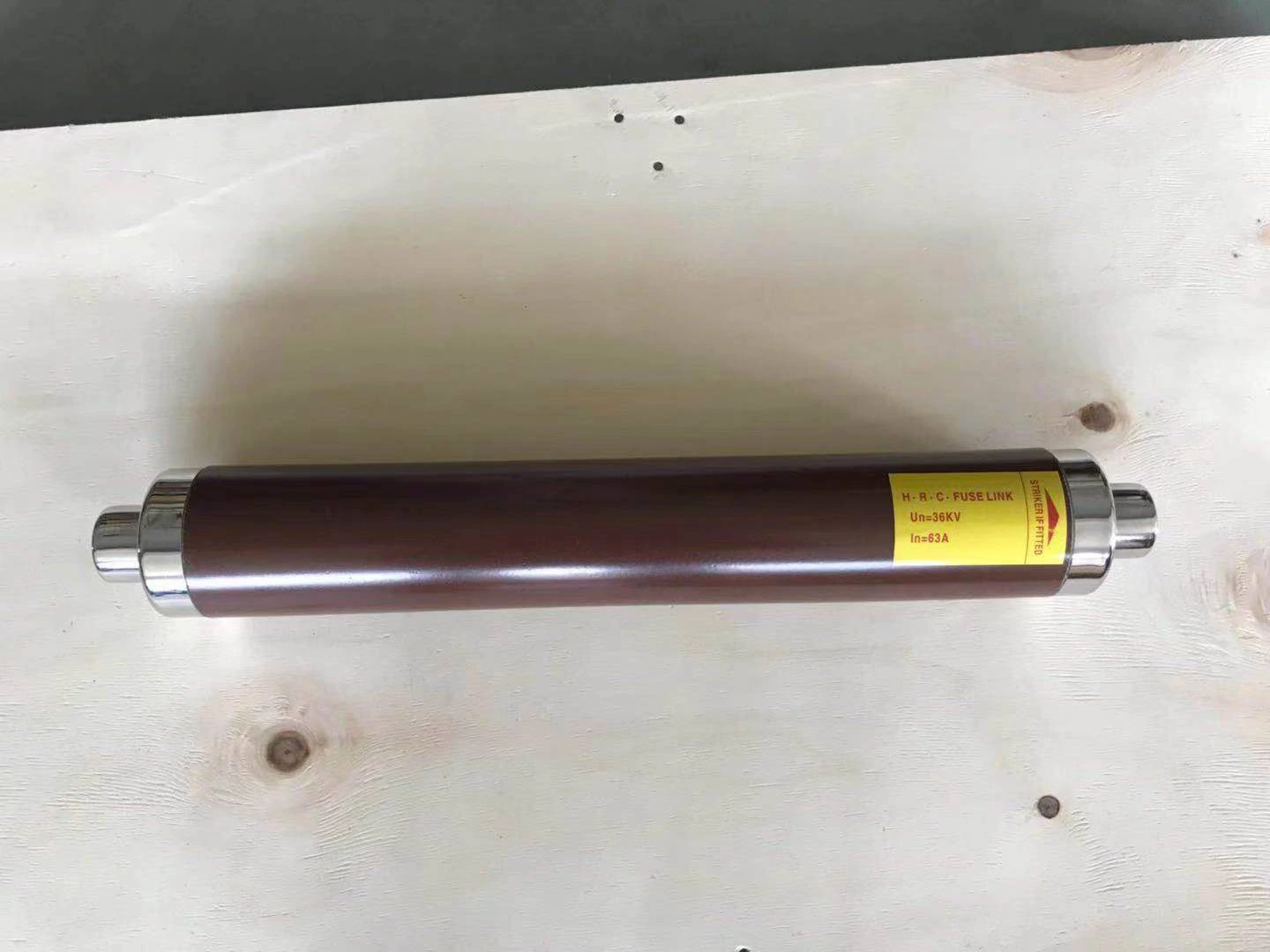

Current Limited Fuse

current limited fuse is a kind of high voltage fuse.Current limited fuses are divided into resistance current limited and arc reactance conversion current limited .Resistance current limited restricts the current value of a circuit below a certain amplitude.Whether short circuit or not, it will not exceed a certain value.The current limited fuse has two melt structures, one in line and one in spiral wound.Arc reactance increases with arc elongation after arc initiation of in-line melt.And gradually change the phase.The helical melt uses helical reactance transformation to change phase.Both create zero voltage, current at the same time zero crossing.Phase shift extinguishes the arc before the current reaches its peak.

This product is suitable for 50 Hz rated voltage 7.2KV, 12KV,17.5KV, 24KV,36KV system, as equipment short circuit protection element, can be used in conjunction with electrical switch.

Product Specifications:

Rated voltage (KV) Rated current(A) Tube Diameter (MM) Overall Length (MM)
7.2 2 4 6.3 10 16 20 25 31.5 40 50 63 80 100 125 160 53   58   74   84 258
12 358
17.5 433
24 508
36 603

Our Advantage:

1. We have been engaged in fuse for more than 15 years.

2. We have experienced engineers and professional QC to ensure your product better.

3. Our company with strong strength, reasonable price, good service and a number of enterprises to establish a long-term partnership.
