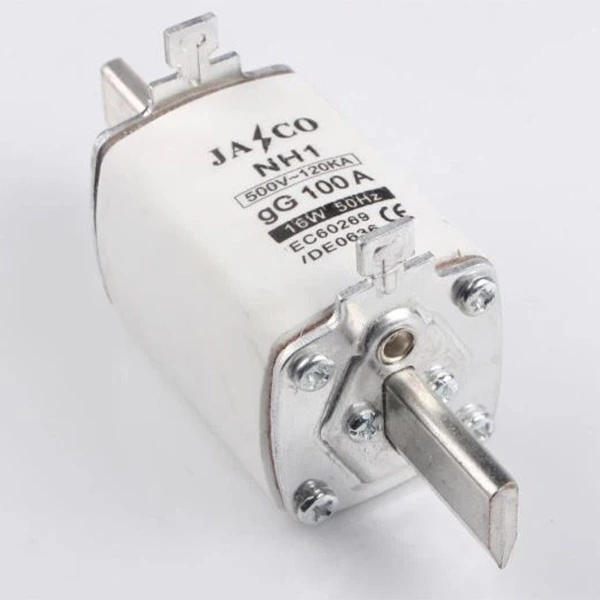

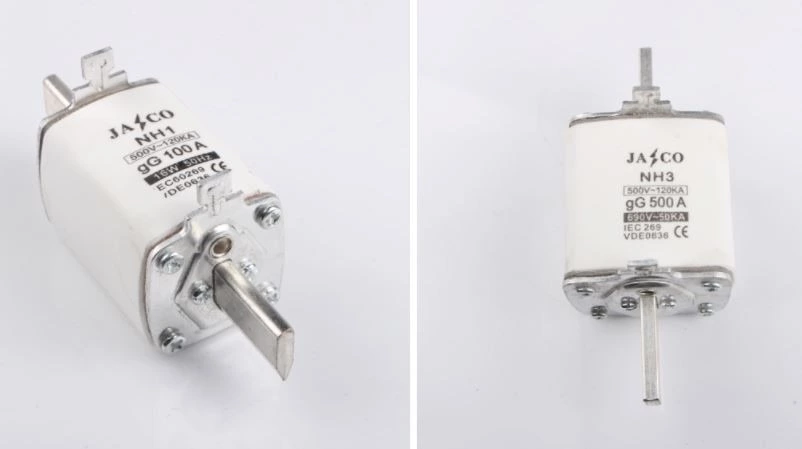

Lv Hrc Fuse

LV HRC fuse is suitable for AC 50Hz , rated voltageto 500V, rated current to 1600A. lt is mainly used in the electric installation for protecting circuit from overload and short circuit(gG/GL); it also may derive for protecting the semiconductor device and others complete set installment from short-circuit(aR)as well as the electric motor from short-circuit.

In this of fuse, the breaking capacity is increased by using two or more separate silver elements in parallel. The sizes of the elements are varied so that the elements fuse in a sequence, one after the other. The body is made up of cylindrical ceramic material and is closed by metallic end caps to which the fuse elements are fixed. The fuse elements are surrounded by silica, which acts as the arc quenching medium. An indicator, normally a fine resistance wire, is connected in parallel to the fuse element. In this type of fuse, the whole fault current is not shed immediately due to the usage of more than one fuse element. This construction avoids voltage transients in the circuit.

Product Specifications：

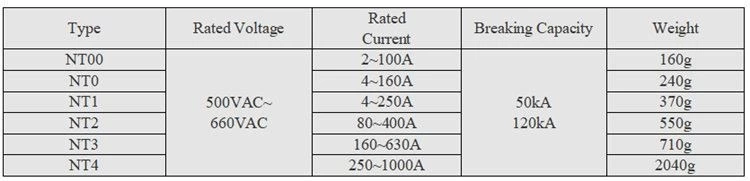

Main Technical Parameter：

Our Advantage:

1. We have been engaged in fuse for more than 15 years.

2. We have experiencd engineers and professional QC to ensure your product better.

3. Our company with strong strength, reasonable price, good service and a number of enterprises to establish a long-term partnership.

FAQ：

Q: How about the payment terms?

A: Normally 30% deposit in advance. It can be discussed when we have friendly relationship.

Q: How about Delivery time?

A: We can produce 200,000 pcs per month, large capacity. Normally, 15 days.
