Changeover Load Isolation Switch

This series of changeover load isolation switch is suitable for the changeover of two sets of low voltage electric circuit or the changeover of two sets of load devices or safety isolation.

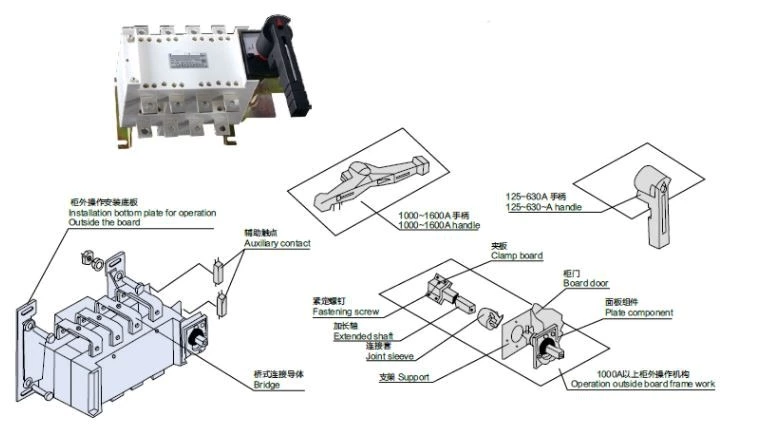

Mode of operation

Direct operation:handle is installed on the switch.

Operation outside the board: handle is installed outside the door of power distributing board.

*Products with observation windows can be provided according to the demand to observe directly tge state of contact. Possesses three poles and four poles.
