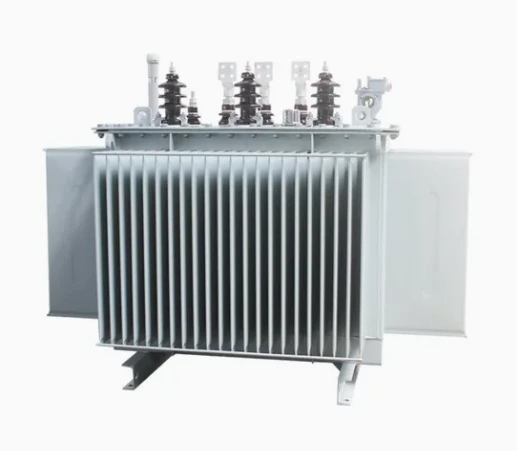

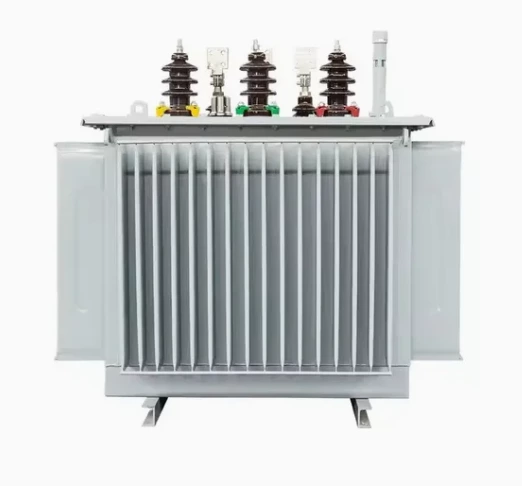

35kV three-phase oil-immersed distribution transformer
Key Features
1. Energy Efficient: With an advanced design, our transformer minimizes core and coil losses, elevating energy conversion efficiency and
significantly reducing operating energy consumption. This makes it an essential component of cost-effective power solutions.
2. Low Loss: Built using premium silicon steel sheets and cutting-edge manufacturing techniques, it reduces no-load and load
losses, leading to a substantial decrease in total operational costs and ensuring superior economic efficiency.
3. Excellent Heat Dissipation: Utilizing oil as a cooling medium, it efficiently dissipates heat through natural convection or forced oil
circulation, guaranteeing stable and reliable functionality even under heavy load conditions, thus extending equipment longevity.
4. Environmentally Friendly Design: Fully compliant with global energy-saving and environmental standards,
it helps in cutting carbon emissions and environmental impact, making it an ideal choice for green initiatives and modern eco-friendly power
grids, nurturing a sustainable and eco-conscious future.
5. Safe and Reliable: Constructed with high-quality insulation materials and meticulous craftsmanship, the transformer ensures safe and stable
operation in challenging grid conditions, providing reliability and peace of mind.
Iron core: the iron core is made by crystal grain-oriented silicon-steel sheet; GEORG cross cut shear (made in West Germany) is adopted to cut the siliconsteel sheet with a 45° joint seam; fold the sheet into a multistage rotmd cross-section to reduce the noise and power consumption.
Coil: cylinder type for high voltage; cylinder type or foil type for low voltage; this can increase the ability to resist short circuit and strike; and the distribution of magnetic path is more rational.
Oil tank: the oil tank is made by fine cold-rolled steel sheets; GEORG corrugation oil tank production-line is adopted; to meet environmental needs, then, antiseptic coating material is applied on the surface, which can meet the requirements for petroleum and chemical industry (much oil stain and many chemical substances). In addition, the corrugations not any possess heat radiation function,but also meet the requirement for oil expansion and oil contraction trader normal performance. The isolation from air guarantees a low aging speed of oil and a long life expectancy of transformer. Insulation structure: oil-immersed distribution transformer adopts A-level insulation structure; high voltage coil and low voltage coil are concentric; the space between coils is cardboard sleeve small oil clearance oil partition structure.

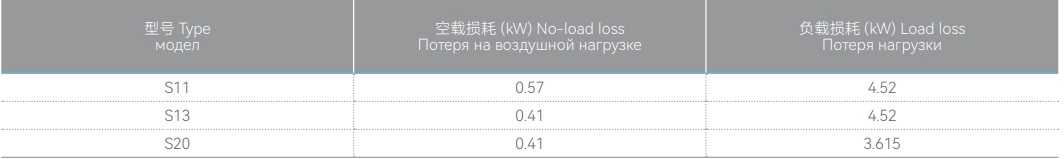

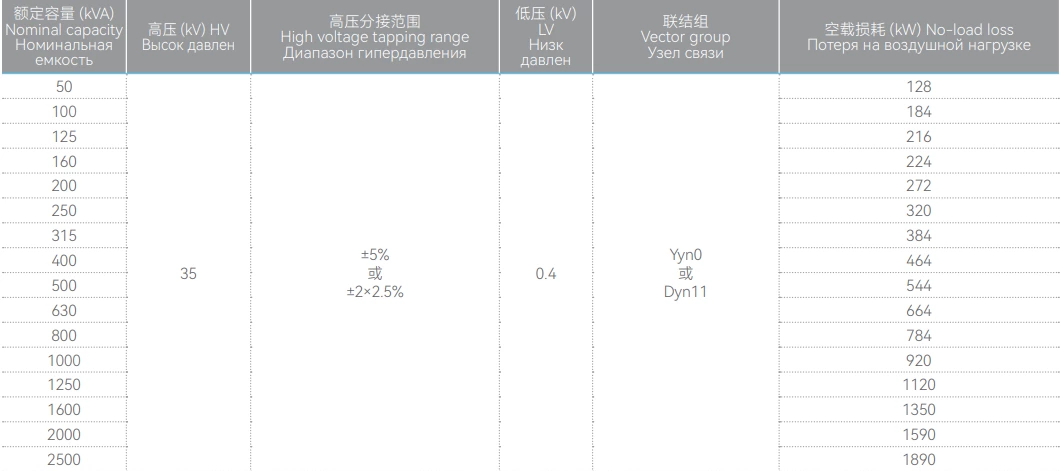

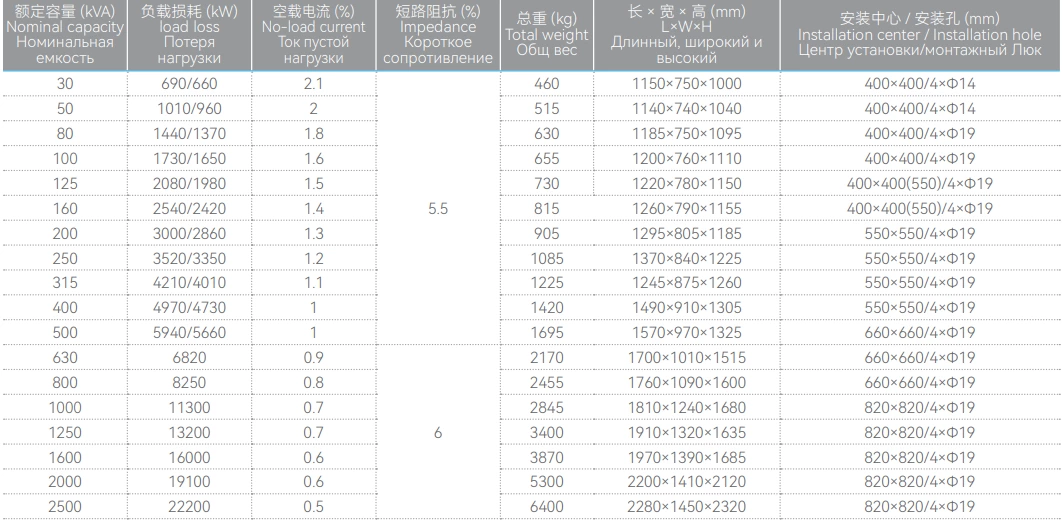

Technical parameter

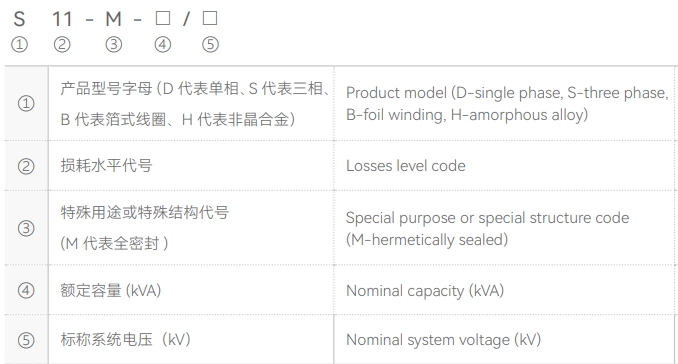

S11 series 35kV three-phase oil-immersed distribution transformer
Basic Info.
| Cooling Method | Oil-immersed Type Transformer |
| Material | CRGO,Copper,Minral Oil |
| Origin | Zhejiang China |
| Brand | JASCO |
| Package | Wooden Case |
| Losses | Loe Losses |
FAQ
1. What about the lead time?
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
2. Can you do OEM?
Yes, we are 61 years factory,we can provide OEM (Original Equipment Manufacturer) services. We can customize the transformers according to your specifications, including branding, design, and packaging to meet your specific needs. Let us know your requirements, and we'll work with you to deliver a product that aligns with your request.
3. What is your payment terms?
T/T, L/C,Visa Paypal for different circumstances.
4. Do you have inspection procedure before shipping?
Yes,we do 100% QC inspection.
5. Do you offer guarantee for the products?
Yes. We offer at least two years warranty for all of our transformer.
