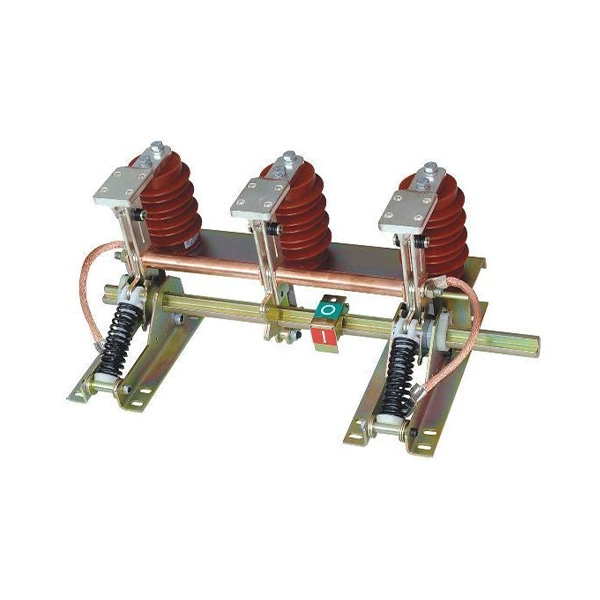

Grounding Switch

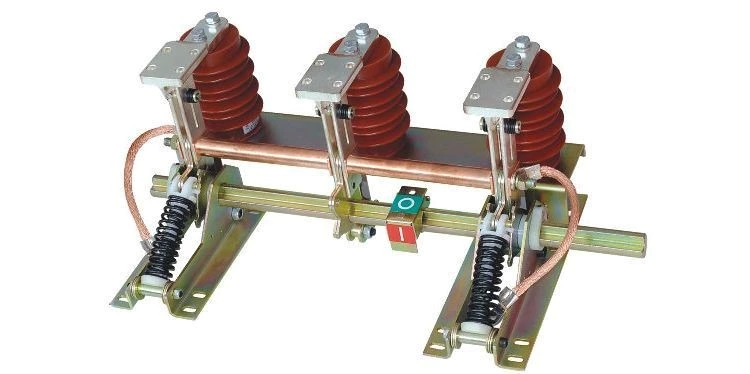

JN15 indoor high voltage groundingswitch is a grounding switch with high-tech parameters performance. After comprehensive evaluation,it conforms to GB1985 and IEC62271 standard ,applies to power system of 24kV and three-phase AC 50Hz. It owns short-circuit making capacity to protect other electric equipment not being damaged. Can be used with various high voltage switchgear,also play a protective role in the high-voltage electrical equipment overhaul. Grounding switches use resin insulators, on which live parts, made of silver-plated electrolytic copper (99.9%), are placed. The blades are directly connected to the drive shaft. Contact elements are over dimensioned according to the requirements in order to guarantee, together with a high contact pressure between blades and contacts, a reduced ohmic resistance at the contact surface and a minimum metal wear-off during the life of the grounding switch, with the necessary robustness to withstand thermal and mechanical stresses under short-circuit conditions.

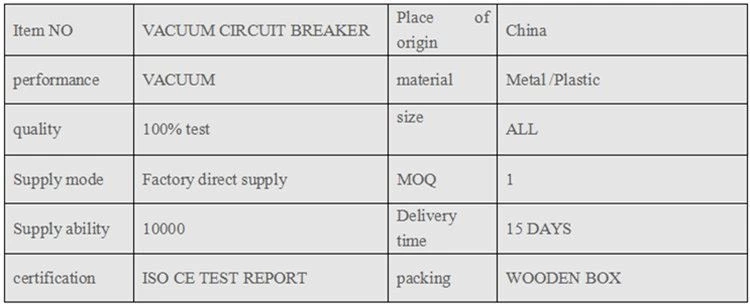

Product Specifications：

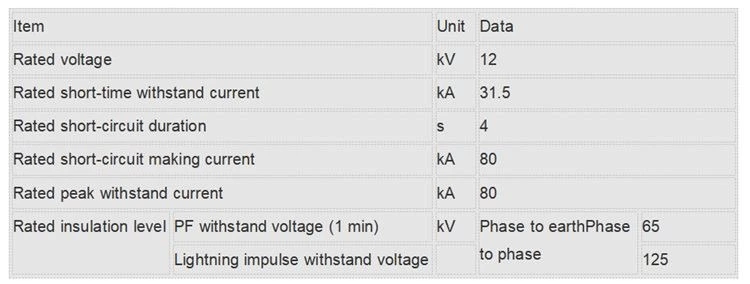

Main Technical Parameter：

Our Advantage:

1. We have been engaged in fuse for more than 15 years.

2. We have experienced engineers and professional QC to ensure your product better.

3. Our company with strong strength, reasonable price, good service and a number of enterprises to establish a long-term partnership.

FAQ：

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in LV and HV fuses. And we trade our products with our clients directly.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
